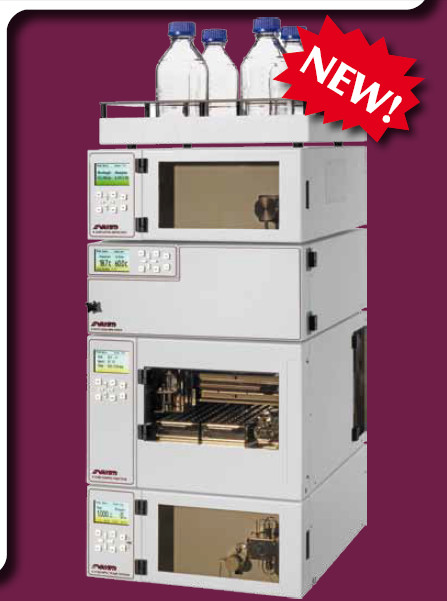

The Sykam RESEARCH HPLC System S 600 is intended
for the ambitious analyst. The system configuration
is highly variable and several upgrade options
make this system suitable for the whole range
of analytical applications.


„„Dual-Piston Pumphead
The S 1130 pumps use a dual-piston pumphead
for low pulsation. Together with electronic pressure
compensation the S 1130 pumps are suitable for all
analytical tasks in HPLC and GPC.


„„Optional: Piston Backflushing
The S 1130’s pump head incorporates an optional
active piston backflushing system; this system is interchangeable
with old Sykam pumps and does not
require an additional motor.

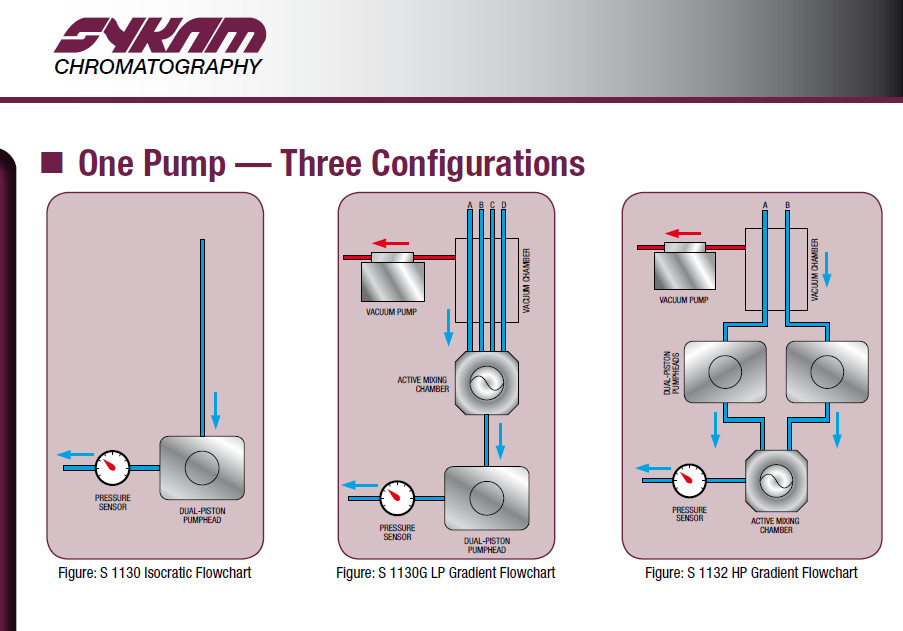

„„ S 1130 HPLC Pump System
The Sykam S 1130 HPLC Pump System is a very
flexible and powerful HPLC solvent delivery system.
Its modular setup makes the S 1130 one of the most
versatile pump systems on the market. The possible
configurations include an Isocratic, Quaternary
Gradient Pump or a Binary High-Pressure Gradient
Pump.


„„Stepper Motor
The S 1130 is driven by a high-power stepper motor.
The stepper motor has a much better resolution
in the low-flow range than a conventional DC motor.
„„Active Mixer
The S 1130 low pressure and high pressure gradient
module has an active mixer to achieve highly precise
and accurate gradient results.


„„Lubrication
The S 1130 camshaft is constantly lubricated within
a sealed chamber to guarantee long lifetime and low
maintenance.

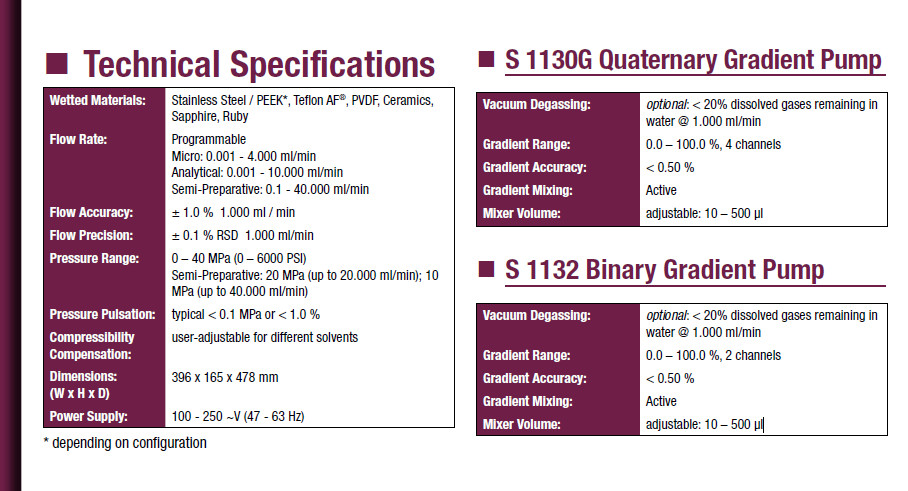

„„Technical Specifications
Wetted Materials: Stainless Steel / PEEK*, Teflon AF?, PVDF, Ceramics,
Sapphire, Ruby
Flow Rate: Programmable
Micro: 0.001 - 4.000 ml/min
Analytical: 0.001 - 10.000 ml/min
Semi-Preparative: 0.1 - 40.000 ml/min
Flow Accuracy: ± 1.0 % 1.000 ml / min
Flow Precision: ± 0.1 % RSD 1.000 ml/min
Pressure Range: 0 – 40 MPa (0 – 6000 PSI)
Semi-Preparative: 20 MPa (up to 20.000 ml/min); 10
MPa (up to 40.000 ml/min)
Pressure Pulsation: typical < 0.1 MPa or < 1.0 %
Compressibility
Compensation:
user-adjustable for different solvents
Dimensions:
(W x H x D)
396 x 165 x 478 mm
Power Supply: 100 - 250 ~V (47 - 63 Hz)
* depending on configuration
„„S 1130G Quaternary Gradient Pump
Vacuum Degassing: optional: < 20% dissolved gases remaining in
water @ 1.000 ml/min
Gradient Range: 0.0 – 100.0 %, 4 channels
Gradient Accuracy: < 0.50 %
Gradient Mixing: Active
Mixer Volume: adjustable: 10 – 500 μl
„„S 1132 Binary Gradient Pump
Vacuum Degassing: optional: < 20% dissolved gases remaining in
water @ 1.000 ml/min
Gradient Range: 0.0 – 100.0 %, 2 channels
Gradient Accuracy: < 0.50 %
Gradient Mixing: Active
Mixer Volume: adjustable: 10 – 500 μl
