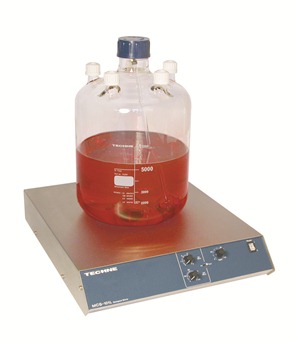

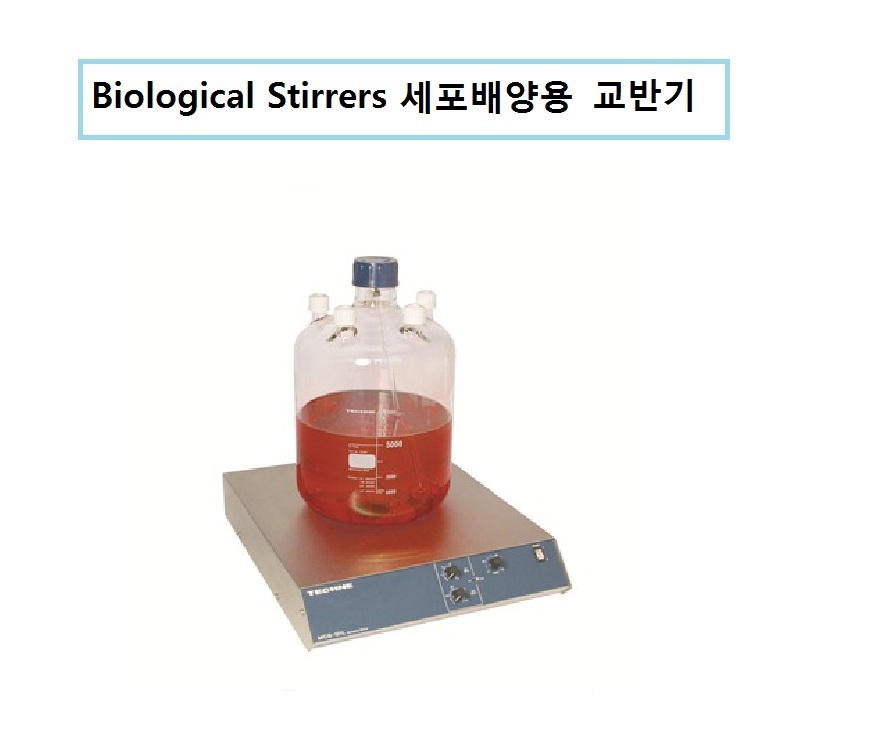

세포 배양용 교반기 / Biological Stirrers

Cat No.

FMCS101L

FMCS102L

FMCS104S

FMCS104L

FMCS104XL

Parameter

MCS-101L

MCS-102L

MCS-104S

MCS-104L

MCS-104XL

Vessels per stirrer

1

2

4

4

4

Maximum vessel size

5000ml

1000ml

500ml

1000ml

5000ml

Speed range

0 to 80rpm

0 to 80rpm

0 to 80rpm

0 to 80rpm

0 to 80rpm

Speed setting accuracy

<±3rpm

<±3rpm

<±3rpm

<±3rpm

<±3rpm

Softstart speed control

20 second acceleration

20 second acceleration

20 second acceleration

20 second acceleration

20 second acceleration

Softstop speed control

20 second deceleration

20 second deceleration

20 second deceleration

20 second deceleration

20 second deceleration

Interval setting: variable on-time

6 seconds to 5 minutes

6 seconds to 5 minutes

6 seconds to 5 minutes

6 seconds to 5 minutes

6 seconds to 5 minutes

Interval setting: variable off-time

2 minutes to 2 hours

2 minutes to 2 hours

2 minutes to 2 hours

2 minutes to 2 hours

2 minutes to 2 hours

Limited operating conditions

40°C and 95% relative humidity (non-condensing)

40°C and 95% relative humidity (non-condensing)

40°C and 95% relative humidity (non-condensing)

40°C and 95% relative humidity (non-condensing)

40°C and 95% relative humidity (non-condensing)

Voltage

Dual Voltage 230/110V 50/60Hz

Dual Voltage 230/110V 50/60Hz

Dual Voltage 230/110V 50/60Hz

Dual Voltage 230/110V 50/60Hz

Dual Voltage 230/110V 50/60Hz

Nominal power consumption

2W

2W

2W

2W

2W

Dimensions (w x d x h)

395 x 495 x 90 mm

140 x 400 x 90 mm

250 x 365 x 90 mm

395 x 495 x 90 mm

530 x 595 x 90 mm

Net weight (excluding vessels)

6.5kg

3.0kg

4.1kg

6.1kg

11.5kg

Shipping weight

7.5kg

4.2kg

5.3kg

7.1kg

13.5kg
