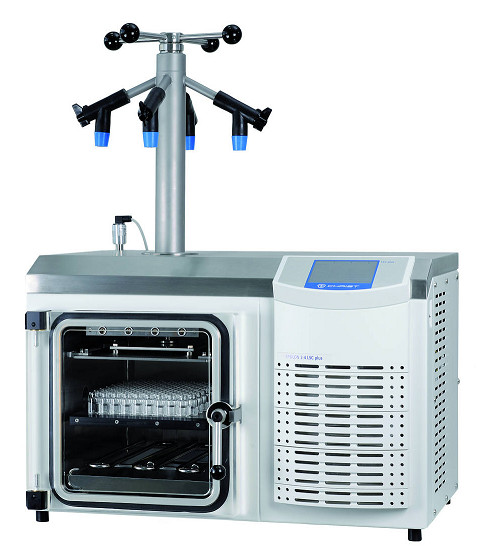

Freeze Dryer EPSILON 1-4 LSCplus
Laboratory-/Pilot Freeze Dryer with a capacity of 4 kg,
Ice condenser temperature: –55°C (EPSILON 1-4)
Universal system with one, temperature controlled shelf. The ice condenser is placed directly within the drying chamber (single-chamber system), thus fast process times can be realized. Unit operation will be done via control system LSC "Lyo Screen Control":
Possible configurations:
Technical Data
Ice condenser - capacity (max. kg) - performance (max. kg/24h) - Temperature (approx.°C)
4 3 -55
Shelf temperature control (T in °C)
-40 to +80
Shelves - quantity Shelf measurements (w x d, mm) Area (m2) Distance between shelves (mm)
2 270 x 400 0.11 - 0.22 2 x 60 mm (max. 135 mm)
Sealing of vials in vacuum / N2
△
Flask drying
Manifold with e.g. 4 controllable vacuum connections each (optional)
Sterilization (H2O2)
Refrigeration compressor Number x KW (PS)
1 x 0.5 (1/3)
Type
air-cooled
Dimensions (w x d x h, mm) Electrical connection (V /Hz / kVA) Weight (kg)
780x480x ca.520 230/50/3 ca. 175
Interface
LSC
Vacuum display Vacuum control function
○ ○
Temperature display: - Ice condenser (display) - Shelves (display and control) - product (measurement of 3 probes max.)
○ ○ ○
Lyo Control
Determining end of drying: - Product temperature measurement - Pressure-increase measurement
○ △
Weighing cell
Manipulator for sample-retrieval during process
-
Programmer module
○
PC-Interface
PC-Documentations software Lyo LL-1
Process-control system LPC-16
* △ = optional ○ = standard
