시료의 파장별 세기를 측정

• Icon driven software
• 작은공간차지
• 자동로깅능력
• 제논램프(7305)
• 여러 악세서리 사용가능

• Icon driven software
• 작은공간차지
• 자동로깅능력
• 제논램프(7315)
• 여러 악세서리 사용가능

<73 시리즈 악세서리 / 73 Series Accessories>

• 분광기로부터 측지 얻은 결과를 프린트 할 수 있음
• 새 Genova Plus는 73시리즈에 기초를 두고 있기 때문에 Genova Plus와 Genova Nano에 73시리즈에 이용 가능
  • Icon driven software
  • Small footprint
  • Autologging capabilities
  • Extensive range of accessories available
  • 3 year warranty

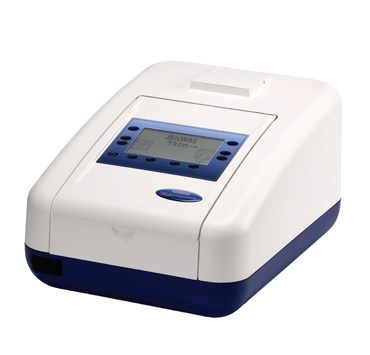

  The 7300 spectrophotometer uses icon driven software and has an improved navigation system for easy and intuitive usability. This spectrophotometer features measurement modes for absorbance, % transmittance and concentration.

  All of the models in the 73 series range are covered by a three year warranty. The 7300 spectrophotometer is easy to use and is ideal for use in education and general QC laboratories.

  The 7300 visible spectrophotometer is fitted with 10x10mm cuvette holder and is supplied with a pack of 100 disposable cuvettes, instruction manual, universal power supply, PC software on CD ROM and interface cable.


  Icon driven software

   Small footprint

   Autologging capabilities

   Press to read xenon lamp (7305)

   Extensive range of accessories available


  The 73 series introduces four new spectrophotometers to the extensive Jenway range.

  These spectrophotometers use icon driven software and have an improved navigation

  system for easy and intuitive usability. The range includes two basic models, 7300 and

  7305 and two advanced models, 7310 and 7315. The 7300 and 7305 feature measurement

  modes for absorbance, % transmittance and concentration.


  All of the models in the 73 series range are covered by a three year warranty which

  includes the xenon lamp. These spectrophotometers are easy to use and ideal for use in

  education and general QC laboratories.



• 7310 및 7315 분광 광도 측정기 / New 7310 and 7315 Spectrophotometers
  Model	7310
  Parameter	7310
  Wavelength Range	320 to 1000nm
  Light source	Tungsten halogen lamp
  Resolution	1nm
  Accuracy	± 2nm
  Repeatibility	± 0.5nm
  Spectral bandwidth	5nm
  Photometric Transmittance	0 to 199.9%
  Photometric Absorbance	-0.300 to 2.500
  Photometric Accuracy	± 1%T, ± 0.01Abs at 1.000 Absorbance
  Photometric Resolution	0.1%T, 0.001A
  Concentration Range	-300 to 9999
  Concentration Resolution	selec table 1/ 0.1/ 0.01/ 0.001
  Concentation Calibration	Blank with a single standard or factor
  Concentration Units	no units, %, ppm, EBC, SRM, mEq/l, mEq, M, mM, μM, nM, U, U/l, U/ml, g/l, mg/l, μg/l, ng/l, g/dl, mg/dl, μg/dl, mg/ml, μg/ml, ng/ml, μg/ul, ng/ul, mol/l, mmol/l
  Concentration Factor	0.001 to 10000
  Concentration Standard	0.001 to 1000
  Quantitation Range	-300 to 9999
  Quantitation Resolution	selec table 1/ 0.1/ 0.01/ 0.001
  Quantitation Calibration	Blank with up to 6 standards
  Quantitation Curve fit algorithms	Quadratic, quadratic through zero, linear, linear through zero, interpolate
  Kinetics Measurement time	2 to 9999 seconds
  Kinetics Calibration	Blank with a single standard or factor
  Kinetics Display	Graphical and concentration
  Kinetics Analysis	Concentration, rate of change, initial and final absorbance/%T
  Kinetics Resolution	selec table 1/ 0.1/ 0.01/ 0.001
  Spectrum Range	320 to 1000nm
  Spectrum Scan interval	selec table 1, 2 or 5nm
  Spectrum Analysis	Absorbance or transmittance and peak and valleys
  GLP	Current time and date, user ID, instrument lock and method lock
  Method storage	240
  Results memory	Limited by attached mass storage device
  Removable media	USB (supplied)
  Outputs	USB, Analogue, RS232, Integral printer
  Size (w x d x h)	275 x 400 x 220mm
  73 시리즈 악세서리 / 73 Series Accessories
  Cat No.	사양
  630204	10 x 10mm path length cuvette holder
  637071	10mm square cuvettes and 16, 24mm test tube holder
  630005	10 to 100mm path length cuvette holder
  630304	Micro-cuvette holder with reduced aperture
  736201	Water heated 10x10mm path length cuvette holder
  735601	Boiling tube holder
  735401	8 cell automatic turret
  735201	Sipper pump
  735301	Peltier
  735701	Combined sipper peltier pump
  660101	Internal printer
  037702	Paper roll for printer
  019146	2GB USB memory stick
  735001	Dust cover
  012075	Tungsten halogen lamp
  730545	Xenon lamp module
