Model

Description

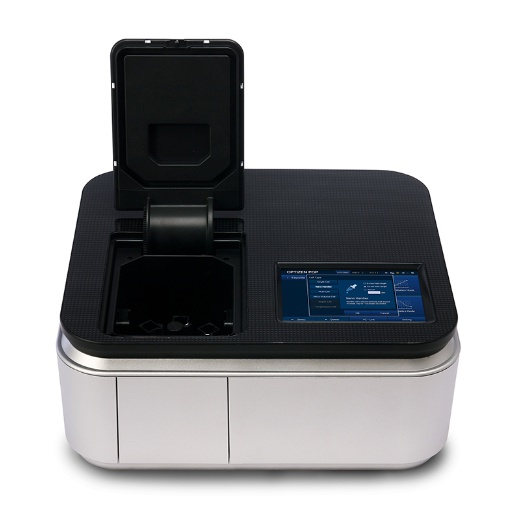

OPTIZEN POP

UV/VIS Spectrophotometer

Model

OPTIZEN POP

Photometrics

System Single Beam Type

Light Source

Tungsten Halogen Lamp &Deuterium Lamp

Detector

Silicon photodiode

Monochromator

Czerny-Turner type with 1200 lines/mm blazed grating

Lamp interchange wavelength

Set freely in the range of 340~410 nm (Default: 370 nm)

Spectral Bandwidth

<1.8 nm

Wavelength Range

190 ~ 1100 nm

Wavelength Accuracy

<± 0.5 nm (at D2 peak 656.1, 486.0 nm)

Wavelength Repeatability

<± 0.1 nm

Wavelength Setting

≥ 0.1 nm

Wavelength Slew Rate

About 7,800 nm/min

Wavelength Scanning Speed

Max 4,000 nm/min

Photometric Range

- 3.0 ~ 3.0 Abs (Enable to Set up)

Photometric Accuracy

<± 0.005 Abs (at 1.0 Abs)

Photometric Repeatability

<± 0.001 Abs

Stray light

< 0.05 %T (220, 340 nm)

Baseline Stability

<± 0.001 Abs/h (at 700 nm)

Baseline Flatness

<± 0.001 Abs (200~1100 nm)

Standard Cell Holder

Rotary type 8 position Multi Cell Holder

Operation

Embeded S/W (Window CE6.0)

Display

7" LCD with touch screen

Interface

4 USB ports/Ethernet

Data Capacity

8 Giga byte

Printer

Supporting network printer

Power Requirement

Free Voltage (50/60 Hz)

Dimensions (WxDxH)

433 x 381 x 180 mm

Weight

8 kg
