둥근 바닥 플라스크에 담긴 액체를 가열할 때 쓰는 제품
The Multi (Extraction) Mantle with six recesses has a built-in electronic controller and offers a choice of heater only (EME6) or heater/stirrer (EMEA6) combination models. They may be used with the FM110 Flow Monitor. The vented case's unique air flow ensures the case remains "cool-to-the-touch".
For both Heater EME6 and Heater/Stirrer EMEA6 models Individual built-in solid state electronic controls enable easy regulation of heater, while removing sparking associated with mechanical switching Three 12.7mm diameter support rods are included Round bottom flask capacity from 100ml to 1000ml at all 6 positions Top cover is polypropylene and external surfaces are powder coated giving good general chemical resistance Coiled heating element is suspended within a thermal insulating cartridge to provide maximum heat transfer and support Earth (ground) screen encloses the heater for added safety Individual heater cartridges are replaceable Neon lights indicate when power is on and supplied to heaters and, if applicable, supplied to stirrers Additional Features for Heater/Stirrer EMEA6 models Allow the solution to be stirred and heated simultaneously Provide stirring speeds of between 50 to 1000rpm One stirring control operates each set of six recesses Warranty: One year parts and labour Certification: CE

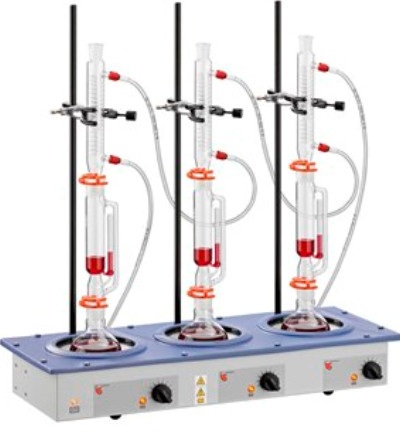

3구 멀티 맨틀 / Multi (Extraction) Mantles : 3 Recess Model

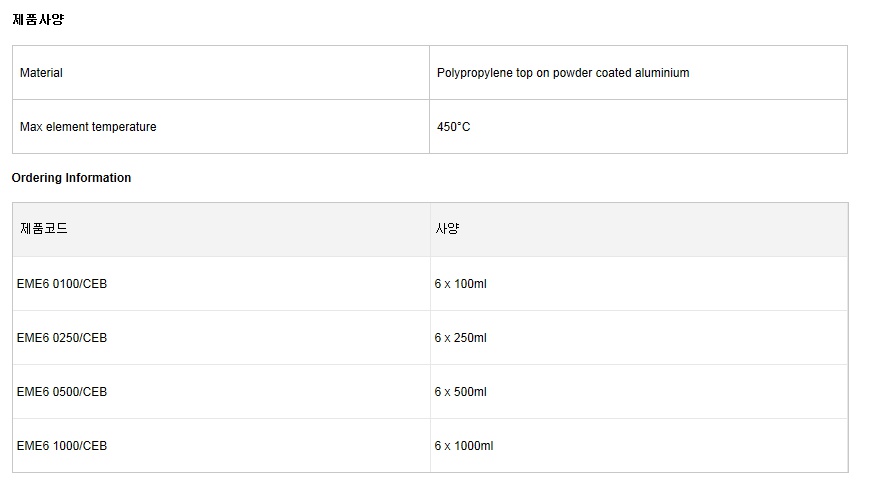

Material
Polypropylene top on powder-coated aluminium
Max element temperature
450°C

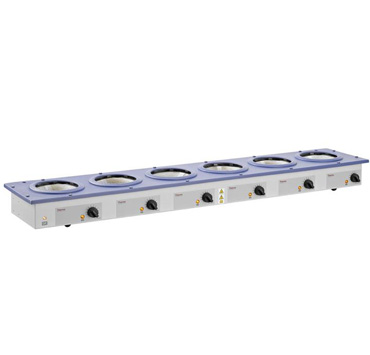

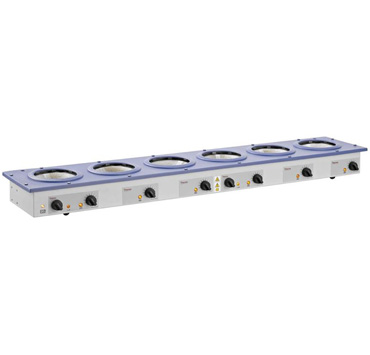

6구 멀티 맨틀 / Multi (Extraction) Mantles : 6 Recess Model
Polypropylene top on powder coated aluminium
