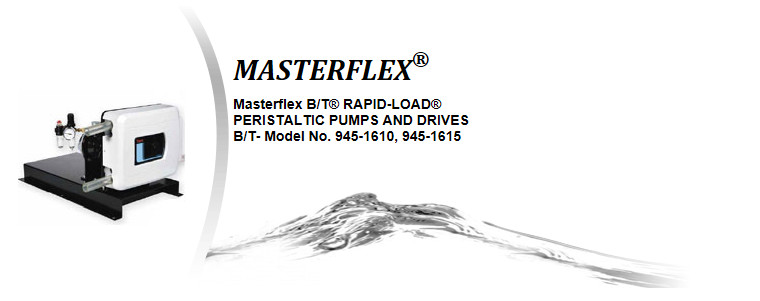

마스타 플렉스 이송펌프 해드 Masterflex B/T 타입 Output Pump Speed: 12 to 321 rpm Torque output, maximum: 1100 oz-in (104 kg•cm) Tubing compatibility: Sizes 87 or 91 Flow Range: Up to 10 GPM (37.85 LPM) Input: Supply voltage limits: Model 945-1610 90 to 130 Vrms @ 60 Hz Model 945-1615 200 to 260 Vrms @ 50 Hz Current, max: Remote outputs 6.5A Model 945-1615 3.3A Construction: Dimensions (L × W × H): Models 945-1610, -1615 27.63 in × 15.88 in × 16.75 in 701 mm × 403 mm × 426 mm Weight: Models 945-1610, -1615 89 lbs (40.4 kg) Enclosure Rating: Models 945-1610, -1615 IP56 per IEC 60529 Environment: Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -20°C to 60°C (-4°F to 140°F) Humidity: (non-condensing) 10% to 90% Altitude: Less than 2000 m Pollution Degree: Degree 3 per EN 61010-1 (Sheltered Locations) Chemical Resistance: Exposed material is painted aluminum, plastic and vinyl Compliance: 115V: UL778, CSA C22.2 No. 108 230V: (for CE Mark) EU Low Voltage Directive (EN61010-1) EU EMC Directive (EN61326) EU Machinery Directive (EN809) Compliance: 115V: UL508C, UL778 CSA C22.2 No. 14, C22.2 No. 108 230V (for CE Mark): EU Low Voltage Directive (EN61010-1), EU EMC Directive (EN61326) and EU Machinery Directive (EN809)
