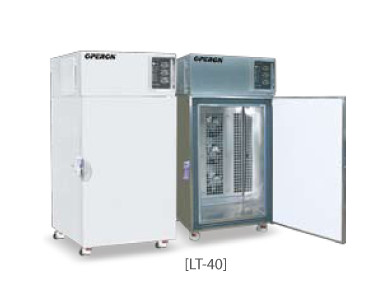

Blast Quick Freezer LT-40 ( 급속 동결기) – 공냉식기준
Dimension : (in)W450 x D475 xH1200mm / (Out)W1310 x D1155 x
H1610mm , Capacity : 256L
Temperature performance : -45°C (at ambient temp. +30°C)
Core sample freezing range ; 0°C ~ -5°C / from 30°C to 25 ~
55min.(Thickness of samples : about 5cm) , Defrost time :
30min.(Heat up from -40°C to +30°C)

Heater : 1.2Kw x 220V – 2sets +30°C fixed for defrost , at +125°C
cut-off , H.T.C.S : Over heat Protector +50°C ~ +320°C
Insulation : High Density Poly Urethane foam 100mm ~ 150mm
CFC-free refrigerants , Refrigeration system : Two stage Auto
cascade systems , Compressor – Hermetic compressors ,
Condenser : Air cooled condenser(BCCI-0006 x 4) , Evaporator – built
in , Circulation fan(Alco) : 3 x NUT6B16PUN201 / FAN 9" Angle -
34degree / Air flow about 557CFM/unit
Temperature controller : LED digital display(Ambient temp. , Chamber
temp. , Core sample temp. , Defrost temp.) , Sensor : 3 x PT-100 for
chamber temp. Core sample temp. , and Ambient temp.
Door : Single
Elec. Power requirement : AC220V (50Hz) 3ph or AC380V (50Hz) ,
3Ph, 20A , 7.5Kw
Optional accessories(선택사양) :
Tray carrier (W740 x D470 x H1100)
Tray – 8shelves(W740 x D470 x H40mm) x 8sets
Tray car
--------------------------------------------------------------------------------------------------------------
Blast Quick Freezer LT-40 ( 급속 동결기) – 공냉식
Dimension : (in)W750 x D620 xH1200mm / (Out)W1610 x D1300 x
H1610mm , Capacity : 558L
Temperature performance : -45°C (at ambient temp. +30°C)
Core sample freezing range ; 0°C ~ -5°C / from 30°C to 25 ~
55min.(Thickness of samples : about 5cm) , Defrost time :
30min.(Heat up from -40°C to +30°C)
Heater : 1.2Kw x 220V – 2sets +30°C fixed for defrost , at +125°C
cut-off , H.T.C.S : Over heat Protector +50°C ~ +320°C
Insulation : High Density Poly Urethane foam 100mm ~ 150mm
CFC-free refrigerants , Refrigeration system : Two stage Auto
cascade systems , Compressor – Hermetic compressors ,
Condenser : Air cooled condenser(BCCI-0006 x 4) , Evaporator – built
in , Circulation fan(Alco) : 3 x NUT6B16PUN201 / FAN 9" Angle -
34degree / Air flow about 557CFM/unit
Temperature controller : LED digital display(Ambient temp. , Chamber
temp. , Core sample temp. , Defrost temp.) , Sensor : 3 x PT-100 for
chamber temp. Core sample temp. , and Ambient temp.
Door : Single
Elec. Power requirement : AC220V (50Hz) 3ph or AC380V (50Hz) ,
3Ph, 20A , 7.5Kw
Shipping size /Weight : About - W1910 x D1610 x H1910 / 700kg
Optional accessories(선택사양) :
Tray carrier (W740 x D470 x H1100)
Tray – 8shelves(W740 x D470 x H40mm) x 8sets
Tray car
