구성 : M20 Mill, M21 Cutter, M20.1 Chamber Batch mill suitable for dry grinding of hard and brittle substances 단단하고 깨지기 쉬운 (Hard and Brittle) 소량 시료의 Dry Grinding용 건조한 야채 / 곡물, 토양, 냉동 육류 및 Plastic Granulates용으로 적함함 Spare Chamber M 20.1 (Option)을 사용하여 교대로 작업이 가능함 Meat, Tissue, Plant, Elastomer등을 분쇄하기에 앞서 액체 질소를 직접 넣어 동결이 가능함 Double Walled Grinding Chamber : 냉각수를 이용하여 온도를 낮출 수 있음
Model
Type
용량
Speed
1603600

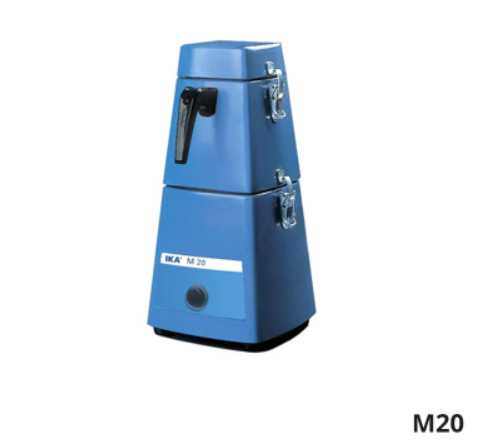

M20
250 ml
20,000 (fixed)
2900000
Motor Rating (in/output)
440 / 225 W
28,000 rpm (fixed)
Useful Volume
Duty Cycle On/Off
7 min / 10 min
Overload Protection
Current Limitatioin
Circumferential Speed
72 m/s
Max. Granularity of Task
5-7 mm
Material Grinding Chamber
Stainless Steel (AISI 304)
Material Cover
Dimension / Weight
w170× d170× h350 mm / 6.6 kg
Power
220 ~ 230V, 50/60 Hz
Optional Accessory
Description
0328200
M 21
Spare cutter, stainless steel ①
0521800
M 22
Hard metal cutter ②
1443400
M 23
Star-shaped cutter ③
8006200
M 20.1
Grinding chamber ④
